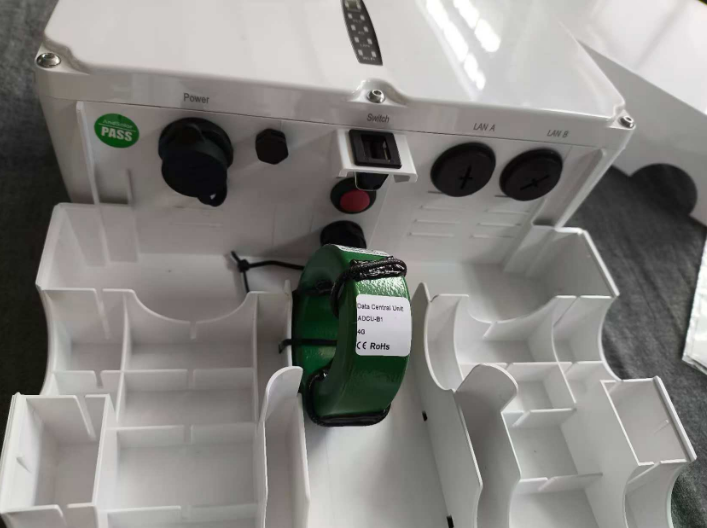

Product Name: ADCU Data Concentrator
Input(DC):
Input Voltage: 85~264V
Operating Power: 2W
Maximum number of component series: 30
Maximum MPPT string voltage: 1500V
Magnetic ring parameters:

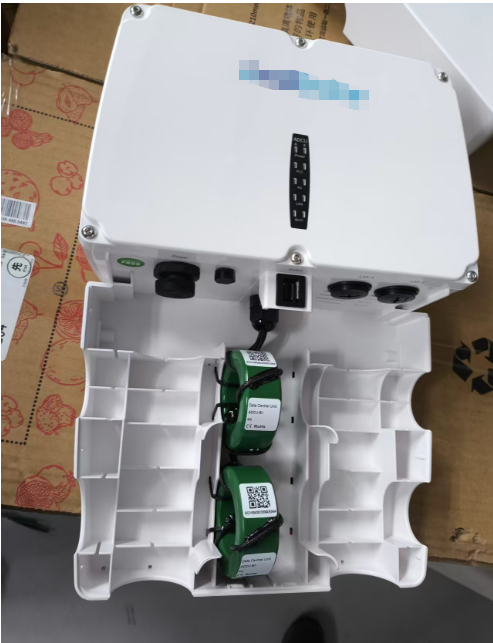

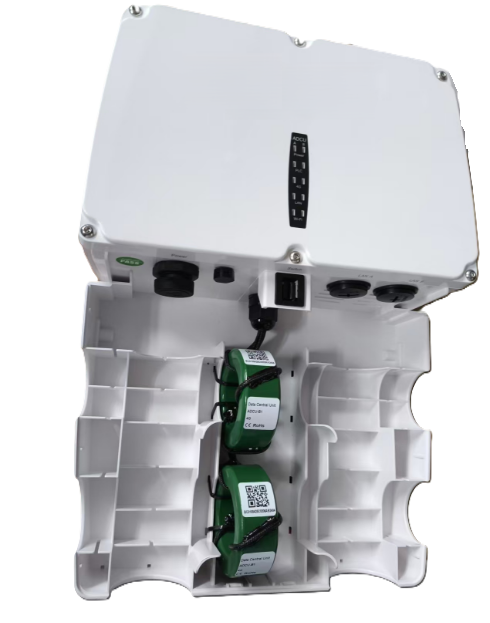

Number of magnetic rings: 1/2
Maximum input string: 10/30
Maximum number of accessed components: 200/600(Part of the equipment)
Magnetic ring thickness: 23mm/46mm
Inner Diameter/Outer Diameter: 38mm/63mm
Maximum current of a single ring: 500A

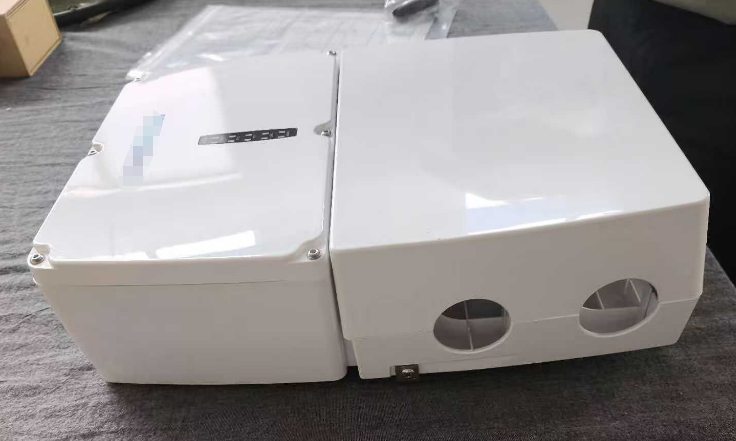

Outdoor box parameters:
Dimensions (W*D*H): 240*101*340mm
Operating temperature: -40℃～+85℃
Ingress protection: IP65
Communication
Device communication: HPLC
Cloud platform communication: 4G/LAN/Wi-Fi
Certification standards
Funcrion and Safety: NEC 2017&2020(690.12),UL1741,CSA C22.2 No.330,UL3741,IEC/EN 62109-1
EMC: FCC Part 15, IEC/EN 61000-6-1/-2/-3/-4
