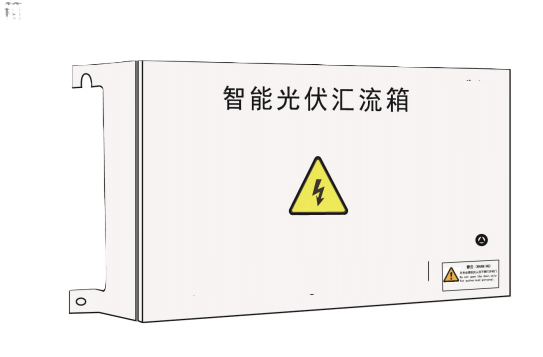

Product Name: LM-PVSZ-G8 MOULDED CASE CURCUIT BREAKER (MCCB)
Datesheet:
Rated voltage(V DC): 1000
Max. Number of DC input strings: 8
Number of DC output: 1
Max.input current per strings(A): PV Module Isc
Max.continuous output current(A): 8*Isc
Max.input fuse rating(A): 30 (positive+negative)
Max.output MCCB rating (A): 200
Strings input cable (mm²): 16*4~6
Output cable (mm²): 2*(1*50)
Ground cable (mm²): 1*16
Communication cable (mm²): 2*2*1.0
Cable connection: Down in, down out
MCCB(Moulded Case CircuitBreaker)
Ue:≥1000V DC, In:200A,2 pole,with auxiliary contacts.Icu:10kA
according to IEC 60947-2
Fuse-links: Ue:1000V DC, In: 30A,Breaking capacity:≥30KA,gPV
Fuse holder: Ue:1000V DC, In:30A
Power SPD（Surge protection device）: Type II,In:20KA, Imax:40KA, Up:4KV, Uc:1300V,with signal contact
RS 485 Communication SPD: In:5KA,Imax:10kA,Un:12V,Uc:18V,Up:30V
Monitor device: Bus voltage, current of per string, power, normal and failed status of
SPD, output DC MCCB status(on/off ),product internal temperature, Modbus-RTU protocol, RS 485 communication
Diode:N/A(Not applicable)
Monitor power supply: Self -powered,Input voltage:450~1200VDC
Input/Output/Ground/Communication: PA66 cable glands,IP68
Installation method: Vertical Mounting or Pole mounted
Ingress protection:IP65
Cooling method: Natural convection
Anti corrosion grade: Not less than C3
Overvoltage category III
Enclosure material: 1.5mm Galvanized steel,RAL7035 color
Operation temperature range: (°C) -25...+55(＞50℃, components will be derated,Based on the drawings)
Cooling method/Heat dissipation: Natural convection
Ambient humidity (%): 0~99
Altitude(m): ≤2000 (2000m without derating,＞3000m, components will be derated)
Weight (KG): Based on the drawings
Enclosure (W*H*D): Based on the drawings
Mounting screws: Recommend M10(Longmax responsibility),Pole mounted or wall mounted
