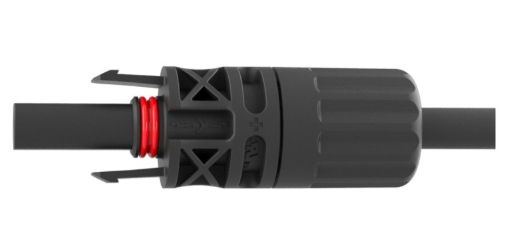

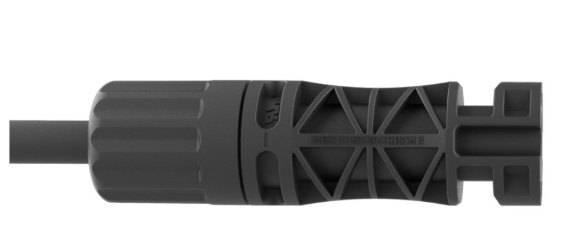

Product Name: QC 4.10 Mate PV Connector
Rated Voltage: IEC2000V
Rated Current: 41A for 2.5m㎡, 46A for 4.1m㎡，55A for 6.0m㎡，50A for 10.00 m㎡
Certified Model: QC4.10-efs
Cable Specification: OD 4.7~8.7 mm, 2.5m㎡，4.0mm²，6.0mm²，10mm²
IP degree: IP65/IP68(1m,1h)
Portection Class: Class II
Resistance of Connector: Max 0.2mΩ
Flammability Class: UL94V-0
Temperature Range: -40℃~+85℃
UL certificate also available, email us for more information
