10kW PV Carport

Features:

•Environmentally friendly gener ation of energy, for charging your electric vehicle.

• Quick and uncomplicated installation in just a few steps.

• Simple operation and overview of the charging process via app.

• High battery capacity of up to 40 kWh ensures possible charging even in bad weather and at night.

• Due to its independence from the grid, the solar carport can be set up in any location

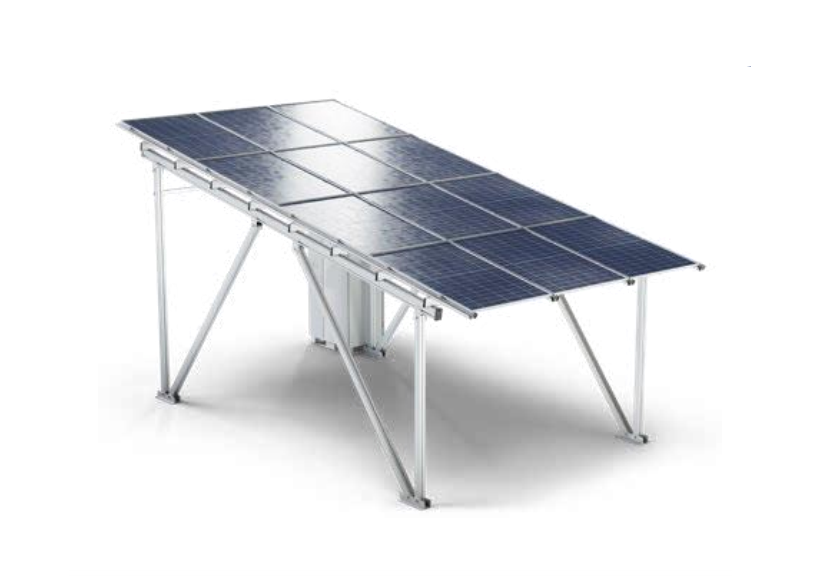

Carport Bracket:

Product series: Single column, double column
Ground distance from the lowest point of the module: Conventional 2500mm (customer-defined)
Component Layout: Horizontal/Vertical Arrangement
Parking space span: 2500-3000mm (single parking space)

5000-6000mm (double parking space)
7500-8500mm (3 parking spaces)
Bracket angle: 5-10 degrees
Surface treatment: hot-dip galvanized/pre-plated magnesium-aluminum-zinc
Material: Q235B/Q355B (main steel frame); +S420GD (Water Tank)
Waterproof method: W aqueduct, U-shaped aqueduct, EPDM waterproof rubber strip, waterproof gutter

SOLAR PANELS

Width: 1722mm

Depth: 1134mm

Height: 30mm

Weight: 24.5kg

Max. Power: 430w

Max.Power.Voltage: 32.12V

Max.Power.Current: 13.39A

Efficiency: 22.02%

Cell Type: Topcon

Junction box: IP68

INVERTER

Width: 620 mm

Depth: 445 mm

Height: 130 mm

Weight: 27kgs

Rated output power: 10kW

Max. input power: 11kW

Rated output voltage: 120/240V split-phase

Max. DC input voltage: 500v

Max. input current: 22A

Max. solar charging current: 200A

Short-circuit protection: Circuit breaker
