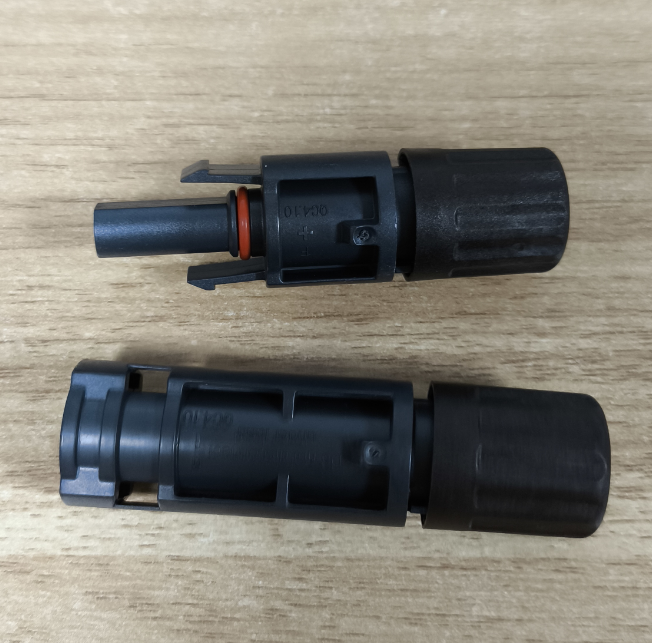

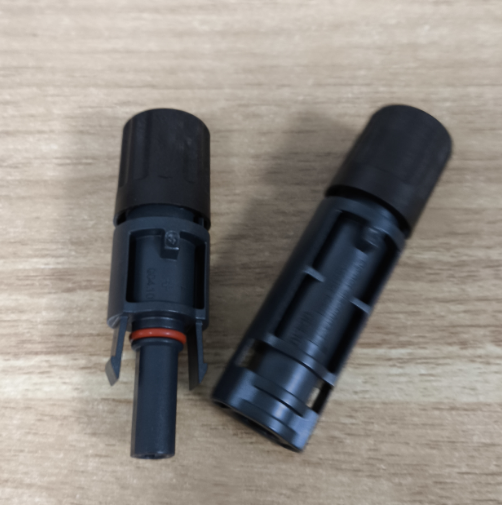

Product Name: MC4 Connectors 1000V
Datesheet:
Rated voltage: IEC1000V/UL1000V
Current rating: 30A, 35A, 40A
Cable size: 2.5mm²,4.0 mm²,6.0 mm²,10mm²
Adaptation connectors: MC4,H4
Protection category: II
Temperature range: -40℃~+85℃
Contact resistance: <5mΩ
Ingress protection: IP68
Fire rating: 5VA
