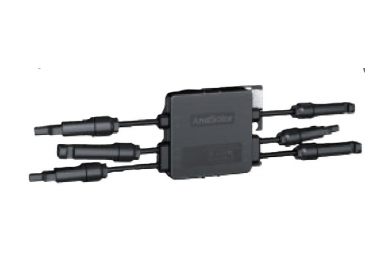

Product Name: AMCL Solar Rapid Shutdown with monitor (one-to-two )
Input(DC):
Input Operating Voltage Range: 8~80V DC per Channel 120V double Channel
Maximum Input Current: 15A/20A/25A
Maximum Short-circuit Current: 30A
Output(DC):
Output Operating Voltage Range: 8-120V
Maximum voltage(shutdown state): 1V
Maximum Output Current: 15A/20A/25A
Maximum System Voltage: 600/1000/1500V DC
General Data:
Dimensions (W x L x H): 103 x 23 x 105 mm
Connector: MC4 customize
Output Wire Length: 1.4 m & customize
Operating Temperature Range: -40℃～+85℃
Protection Rating: IP68/Type 6P
Flammability rating: UL94 5VA
Communication Method: HPLC
Interaction Method: WEB+APP
Standard(s) For Safety: NEC 2017&2020(690.12),UL1741,CAS C22.2 No330, UL3741,IEC/EN 62109-1
EMC: FCC Part 15, IEC/EN 61000-6-1/-2/-3/-4
Product Features:
Multiple shutdown methods to prevent problems before they
occur.Maximum communication distance is 800m which can eet a
variety of usage scenarios. Component-level monitoring can
locate fault points easily. Flexible installation can
compatible with clips and bolts, can shutdown voltage to
ensure DC side safety,firmware over-the-air (OTA) upgrade to
improve product experience,etc.
