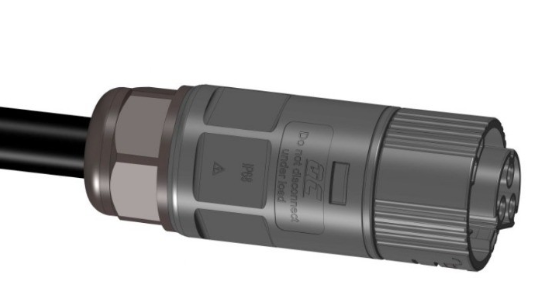

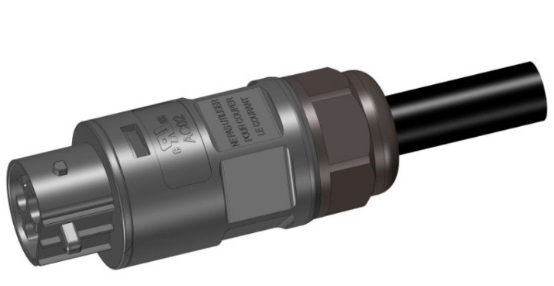

Product Name: AC02 Connector
Electrode Numer: L+N+PE
Rated Voltage: 300V AC
Rated Current: UL6703: 27A(3*14AWG), 31A(3*12AWG),
PPP-59015A: 27A(3*2.5mm²), 31A(3*4m㎡)
Dielectric withstand voltage: 4000V
Material of pin: Copper
House Material: PC
Enclosure flame class: V-0
Pollution degree: II
Protection Degree: IP68
Insulation resistance: ≤2mΩ
Applicable environment temperature: -40℃~+85℃
Outer cable: Specification 3*2.5mm²，3*4mm², Diameter 8.5-11.5mm
Standard 2 PfG 1915/0.3.15
