Product Name: 76A 10PIN Waterproof wall-through terminal block
Number of Pins: 10 P

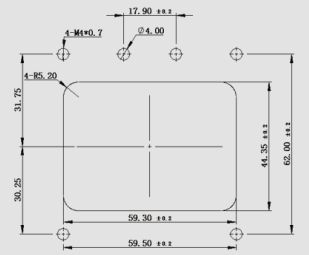

Cut-out:
Unlocking mode: Tools to Unlock
Rated Current: 76A
Rated Voltage: 1000V AC
Rated impulse Voltage: 8KV AC
Wire gauge:internal 6AWG MAX
external：25 mm2 Max
Applicable wire outer diameter: 2*27mm Max
Degree of protection (IP): IP68(1m-1H)
