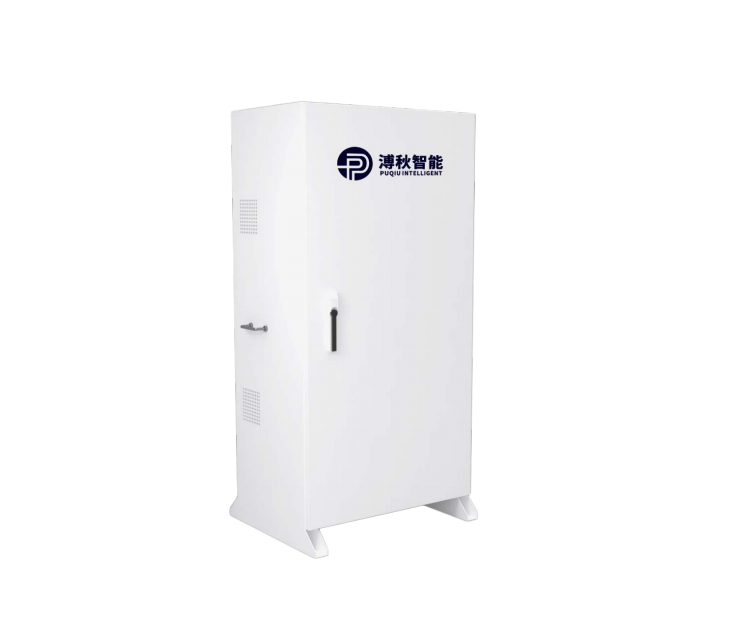

5kW/10.24kWh All-in-one Energy Storage System

Model P8107

System Specification

Rated Power: 5000VA/5000W

Output Frequency and Voltage: 50Hz/60Hz 208V-220V-230V-240VAC

Grid Type: Singe Phase

Battery Energy(kWh): 10.24

Surge Power (20ms):10000VA

AC Output Rated Current (A): 20

Operating Temperature Range(℃): 0~55

Cooling: smart cooling

Dimension(W*D*H,mm): 700*470*1440

IP Rating of Enclosure: IP21

Warranty: 2 years

PV String Input Data

Max. DC Input Power (W): 6000

Max. DC Input Voltage (V): 450

Start Up Voltage (V): 60

MPPT Range (V): 120~430

Max. PV Input Current (A):18

Max. Solar charge Current (A): 100

Number of MPPT:1

Battery Technical Specification

Battery Type: Li-Ion

Battery Capacity(Ah):100

Battery Module Nominal Voltage(V): 51.2

Battery module Num.: 2

Communication with BMS: RS485; CAN

Cycle Life: >4000(@25℃±2℃,0.5C,70%EOL)

Certification: CE,IEC62619,UN38.3
