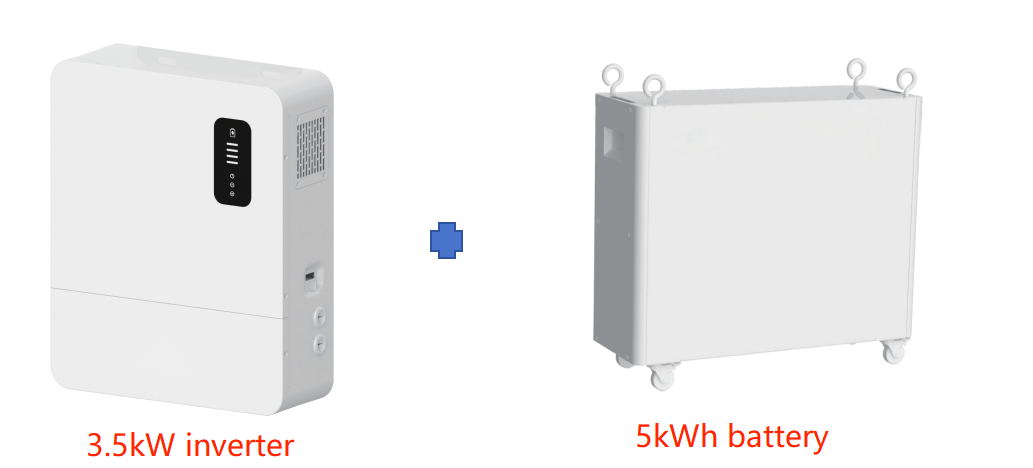

Prodcut Name: 3.6kW+5kWh off-grid storage system.
OFF-GRID Inverter:
Inverter Output
Rated Power: 3600VA / 3600W
Peak Power：7000VA for 2s
Output Type: Single-phase
AC Voltage Regulation (Battery Mode): 230Vac, 50/60Hz
MPPT Voltage Range: 15.7A
Waveform: Pure Since Wave
Transfer time: ＜10ms
PV Input Max. PV Input Power 4200W
Max. Open-circuit Voltage 450Vdc
Min. Startup Voltage: 120VDC
MPPT Voltage Range： 90-430Vdc
Max. PV Input Current：13A
Max. PV Input lsc：18A
Num. of MPPT/PV Array ： 1/1
Grid/Generator AC Input
Rated Input Voltage: 220/230/240Vac
Input Voltage Range: 90-280Vac
Frequency Range: 50/60Hz
Max. Grid Input Current: 20A
Max.Generator Input Current: 20A
Batttery Inverter Output
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy: 5.12kWh
Max. Charge & Discharge Current: 100A
Operating Voltage: 44.8-57.6V
Dimensions (W × H × D): 556*146*351 mm
Weight: 44 kg
Chemistry: LiFePO4
Installation：Floor-Mounted/Stackable
Charge Temperature: 0-55℃
Discharge Temperature: -10-55℃
Storage Temperature: 0-35
Altitude: ≤2000m
Ingress Protection: IP51
Cycle life: ≥6000（25℃±2℃，0.5C/0.5C.80% DOD, 70%EOL）
Communication Interface: RS485
Certification: UN38.3, MSDS
