Product Name: 200A 5PIN Waterproof wall-through terminal block
Number of Pins: 5 P

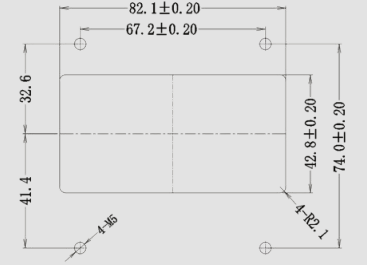

Cut-out:
Unlocking mode: Tools to Unlock
Rated Current: 200A
Rated Voltage: 1000V AC
Rated impulse Voltage: 8KV AC
Wire gauge:internal 2AWG MAX
external：70 mm2(Y JVR/Y JV/YJY) 95mm2(YJV/YJY)
Applicable wire outer diameter: 42mm Max
Degree of protection(IP): IP68(1m-1H)
Degree of protection (IP): IP68(1m-1H)
